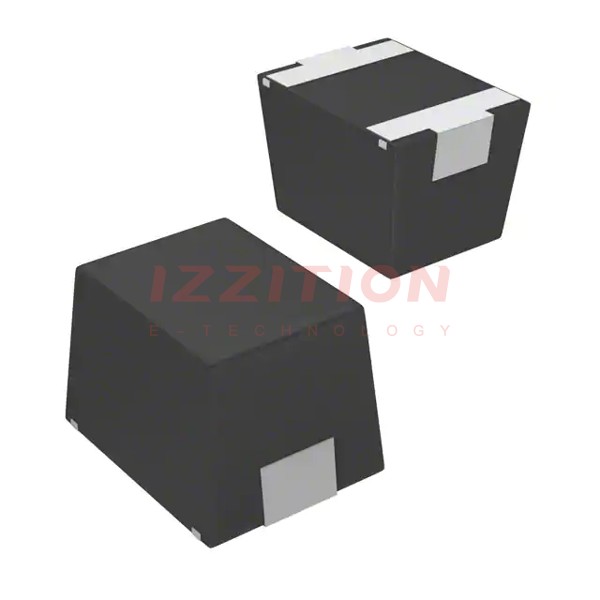

| Part Number | IMC1210ETR33J | IMC1210ERR33J |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron Powder | Iron Powder |
| Inductance | 330 nH | 330 nH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 453 mA | 453 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 400mOhm Max | 400mOhm Max |
| Q @ Freq | 30 @ 25.2MHz | 30 @ 25.2MHz |
| Frequency - Self Resonant | 300MHz | 300MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 25.2 MHz | 25.2 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | 1210 | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.126" L x 0.098" W (3.20mm x 2.49mm) |
| Height - Seated (Max) | 0.095" (2.41mm) | 0.095" (2.41mm) |
