IMC1210ER100J
  • Share:

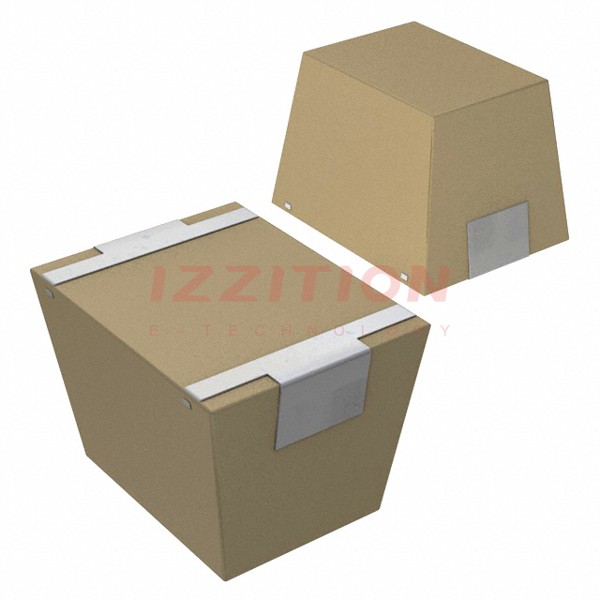

Vishay Dale IMC1210ER100J

Manufacturer No:
IMC1210ER100J
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
IMC1210ER100J Datasheet
ECAD Model:
-
Description:
FIXED IND 10UH 189MA 2.1 OHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Iron Powder
Inductance:10 µH
Tolerance:±5%
Current Rating (Amps):189 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):2.1Ohm Max
Q @ Freq:30 @ 2.52MHz
Frequency - Self Resonant:33MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1210 (3225 Metric)
Supplier Device Package:1210
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.49mm)
Height - Seated (Max):0.095" (2.41mm)
0 Remaining View Similar

In Stock

$0.41
286

Please send RFQ , we will respond immediately.

Similar Products

Part Number IMC1210ER100J IMC1210ER100K   IMC1210ER1R0J   IMC1210ER101J   IMC1210ER120J   IMC1210ER150J   IMC1210ER180J
Manufacturer Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale
Product Status Active Active Active Active Active Active Active
Type Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound
Material - Core Iron Powder Iron Powder Iron Powder Iron Powder Iron Powder Iron Powder Iron Powder
Inductance 10 µH 10 µH 1 µH 100 µH 12 µH 15 µH 18 µH
Tolerance ±5% ±10% ±5% ±5% ±5% ±5% ±5%
Current Rating (Amps) 189 mA 189 mA 400 mA 73 mA 173 mA 164 mA 151 mA
Current - Saturation (Isat) - - - - - - -
Shielding Unshielded Unshielded Unshielded Unshielded Unshielded Unshielded Unshielded
DC Resistance (DCR) 2.1Ohm Max 2.1Ohm Max 700mOhm Max 14Ohm Max 2.5Ohm Max 2.8Ohm Max 3.3Ohm Max
Q @ Freq 30 @ 2.52MHz 30 @ 2.52MHz 30 @ 7.96MHz 20 @ 796kHz 30 @ 2.52MHz 30 @ 2.52MHz 30 @ 2.52MHz
Frequency - Self Resonant 33MHz 33MHz 120MHz 9MHz 30MHz 21MHz 20MHz
Ratings - - - - - - -
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C
Inductance Frequency - Test 2.52 MHz 2.52 MHz 7.96 MHz 796 kHz 2.52 MHz 2.52 MHz 2.52 MHz
Features - - - - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 1210 (3225 Metric) 1210 (3225 Metric) 1210 (3225 Metric) 1210 (3225 Metric) 1210 (3225 Metric) 1210 (3225 Metric) 1210 (3225 Metric)
Supplier Device Package 1210 1210 1210 1210 1210 1210 1210
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.49mm) 0.126" L x 0.098" W (3.20mm x 2.49mm) 0.126" L x 0.098" W (3.20mm x 2.49mm) 0.126" L x 0.098" W (3.20mm x 2.49mm) 0.126" L x 0.098" W (3.20mm x 2.49mm) 0.126" L x 0.098" W (3.20mm x 2.49mm) 0.126" L x 0.098" W (3.20mm x 2.49mm)
Height - Seated (Max) 0.095" (2.41mm) 0.095" (2.41mm) 0.095" (2.41mm) 0.095" (2.41mm) 0.095" (2.41mm) 0.095" (2.41mm) 0.095" (2.41mm)
