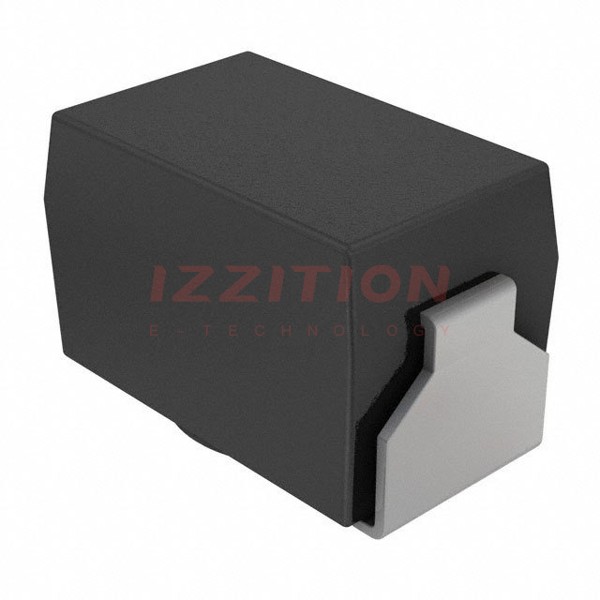

| Part Number | IMC0805ERR12K | IMC0805ERR15K | IMC0805ERR22K | IMC0805ERR82K | IMC0805ERR10K | IMC0805ERR12J |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic |
| Inductance | 120 nH | 150 nH | 220 nH | 820 nH | 100 nH | 120 nH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Current Rating (Amps) | 275 mA | 230 mA | 170 mA | 125 mA | 285 mA | 275 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 760mOhm Max | 1.13Ohm Max | 1.41Ohm Max | 2.6Ohm Max | 660mOhm Max | 760mOhm Max |
| Q @ Freq | 8 @ 25.2MHz | 10 @ 25.2MHz | 10 @ 25.2MHz | 10 @ 25.2MHz | 8 @ 25.2MHz | 8 @ 25.2MHz |
| Frequency - Self Resonant | 600MHz | 600MHz | 500MHz | 80MHz | 800MHz | 600MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 25.2 MHz | 25.2 MHz | 25.2 MHz | 25.2 MHz | 25.2 MHz | 25.2 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.061" (1.55mm) | 0.061" (1.55mm) | 0.061" (1.55mm) | 0.061" (1.55mm) | 0.061" (1.55mm) | 0.061" (1.55mm) |
