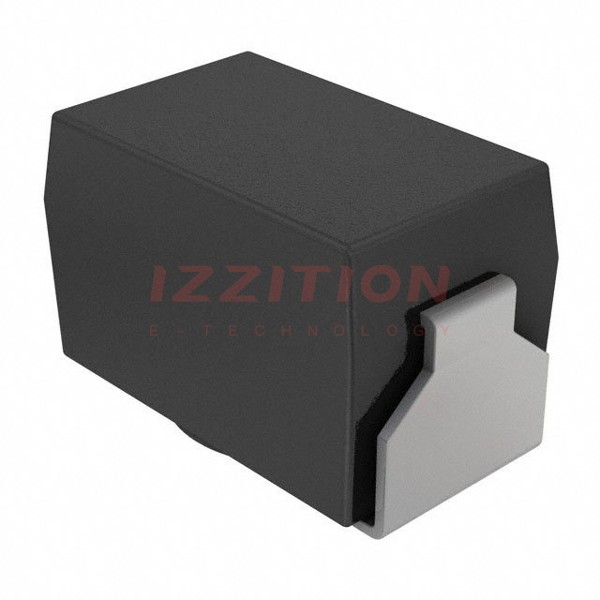

| Part Number | IMC0805ER12NK | IMC0805ER18NK | IMC0805ER22NK | IMC0805ER82NK | IMC0805ER10NK |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic |
| Inductance | 12 nH | 18 nH | 22 nH | 82 nH | 10 nH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 535 mA | 480 mA | 465 mA | 330 mA | 540 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 180mOhm Max | 220mOhm Max | 220mOhm Max | 480mOhm Max | 140mOhm Max |
| Q @ Freq | 10 @ 100MHz | 12 @ 100MHz | 15 @ 100MHz | 15 @ 100MHz | 10 @ 100MHz |
| Frequency - Self Resonant | 3.3GHz | 3GHz | 2.6GHz | 1.1GHz | 3.3GHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.061" (1.55mm) | 0.061" (1.55mm) | 0.061" (1.55mm) | 0.061" (1.55mm) | 0.061" (1.55mm) |
