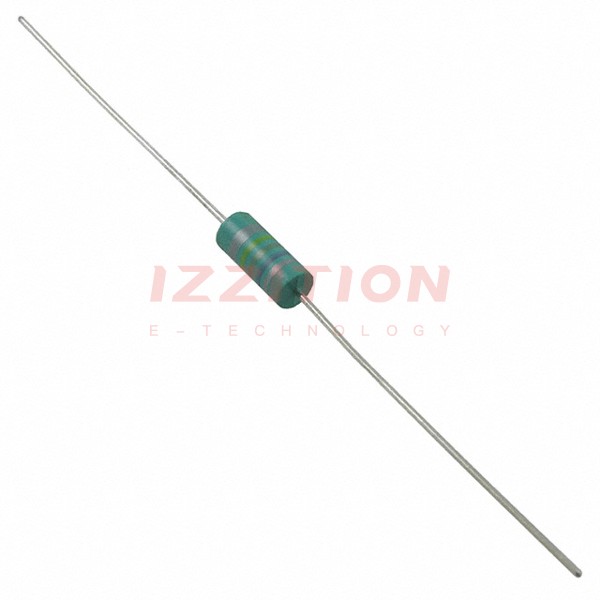

| Part Number | IM04EB4R7K | IM02EB4R7K | IM04EB2R7K |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Molded | Molded | Molded |
| Material - Core | Phenolic | Iron | Phenolic |
| Inductance | 4.7 µH | 4.7 µH | 2.7 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 260 mA | 230 mA | 385 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.6Ohm Max | 1.2Ohm Max | 1.2Ohm Max |
| Q @ Freq | 33 @ 7.9MHz | 45 @ 7.9MHz | 33 @ 7.9MHz |
| Frequency - Self Resonant | 90MHz | 75MHz | 120MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 7.9 MHz | 7.9 MHz | 7.9 MHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) |
| Height - Seated (Max) | - | - | - |
