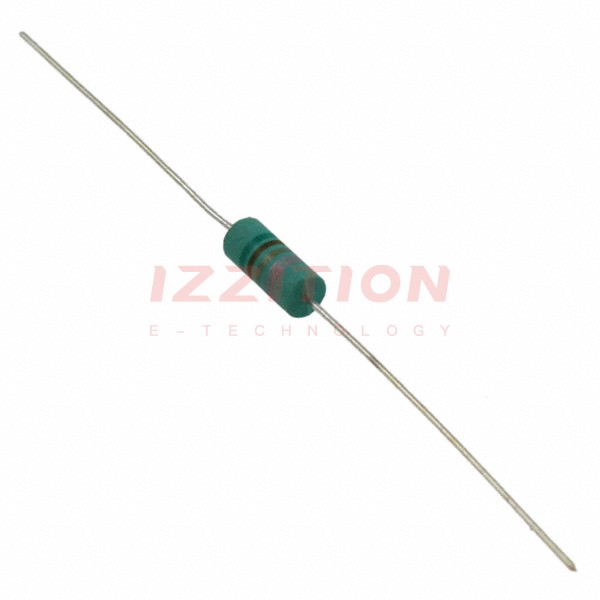

| Part Number | IM04EB2R2K | IM04EB2R7K | IM04EB8R2K | IM02EB2R2K | IM04EB1R2K |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Molded | Molded | Molded | Molded | Molded |
| Material - Core | Phenolic | Phenolic | Iron | Iron | Phenolic |
| Inductance | 2.2 µH | 2.7 µH | 8.2 µH | 2.2 µH | 1.2 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 435 mA | 385 mA | 360 mA | 395 mA | 650 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 950mOhm Max | 1.2Ohm Max | 600mOhm Max | 400mOhm Max | 420mOhm Max |
| Q @ Freq | 33 @ 7.9MHz | 33 @ 7.9MHz | 50 @ 7.9MHz | 30 @ 7.9MHz | 33 @ 7.9MHz |
| Frequency - Self Resonant | 135MHz | 120MHz | 50MHz | 115MHz | 180MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 7.9 MHz | 7.9 MHz | 7.9 MHz | 7.9 MHz | 7.9 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) |
| Height - Seated (Max) | - | - | - | - | - |
