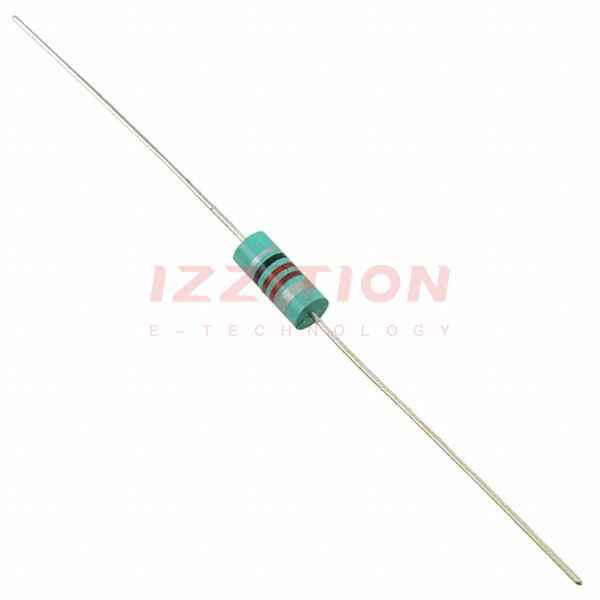

| Part Number | IM04EB220K | IM02EB220K |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete |
| Type | Molded | Molded |
| Material - Core | Iron | Iron |
| Inductance | 22 µH | 22 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 175 mA | 140 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.5Ohm Max | 3.3Ohm Max |
| Q @ Freq | 75 @ 2.5MHz | 50 @ 2.5MHz |
| Frequency - Self Resonant | 30MHz | 25MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 2.5 MHz | 2.5 MHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Axial | Axial |
| Supplier Device Package | - | - |
| Size / Dimension | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) |
| Height - Seated (Max) | - | - |
