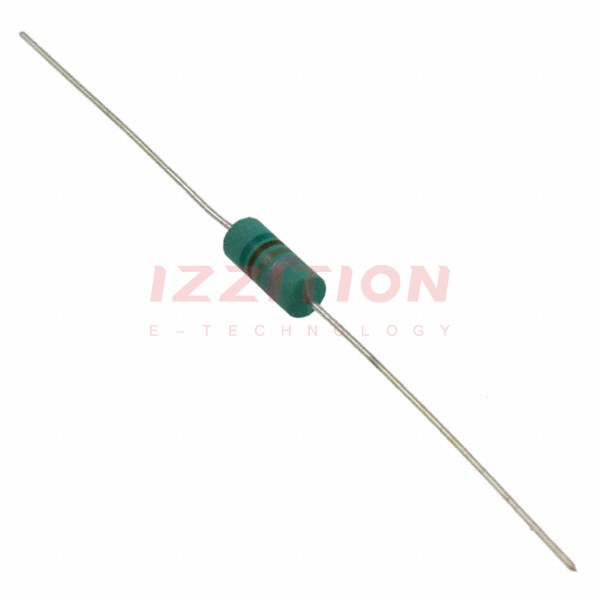

| Part Number | IM04EB150K | IM04EB1R0K | IM02EB150K | IM04EB100K |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Molded | Molded | Molded | Molded |
| Material - Core | Iron | Phenolic | Iron | Iron |
| Inductance | 15 µH | 1 µH | 15 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 240 mA | 785 mA | 150 mA | 290 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.4Ohm Max | 290mOhm Max | 2.8Ohm Max | 900mOhm Max |
| Q @ Freq | 65 @ 2.5MHz | 50 @ 25MHz | 40 @ 2.5MHz | 55 @ 7.9MHz |
| Frequency - Self Resonant | 40MHz | 200MHz | 35MHz | 45MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 2.5 MHz | 7.9 MHz | 2.5 MHz | 2.5 MHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) |
| Height - Seated (Max) | - | - | - | - |
