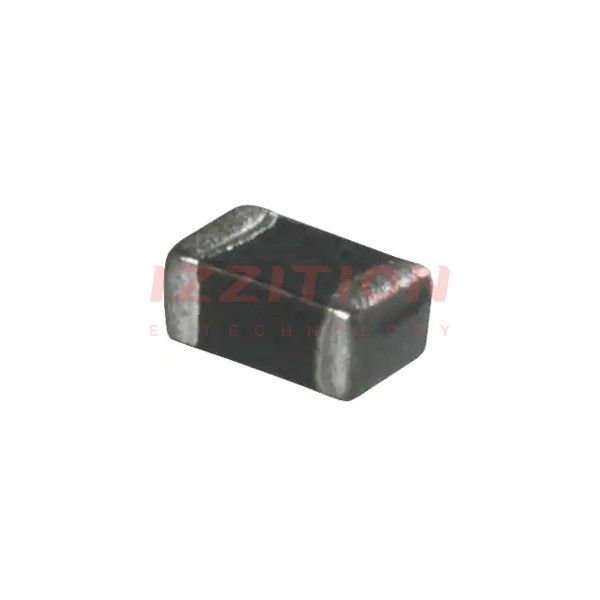

| Part Number | ILBB0805ER900V | ILHB0805ER900V | ILBB0805ER400V | ILBB0805ER500V | ILBB0805ER600V | ILBB0805ER800V |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active |
| Filter Type | - | - | - | - | - | - |
| Number of Lines | 1 | 1 | 1 | 1 | 1 | 1 |
| Impedance @ Frequency | 90 Ohms @ 100 MHz | 90 Ohms @ 100 MHz | 40 Ohms @ 100 MHz | 50 Ohms @ 100 MHz | 60 Ohms @ 100 MHz | 80 Ohms @ 100 MHz |
| Current Rating (Max) | 300mA | 5A | 300mA | 300mA | 300mA | 300mA |
| DC Resistance (DCR) (Max) | 150mOhm | 25mOhm | 150mOhm | 150mOhm | 150mOhm | 150mOhm |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Features | - | - | - | - | - | - |
