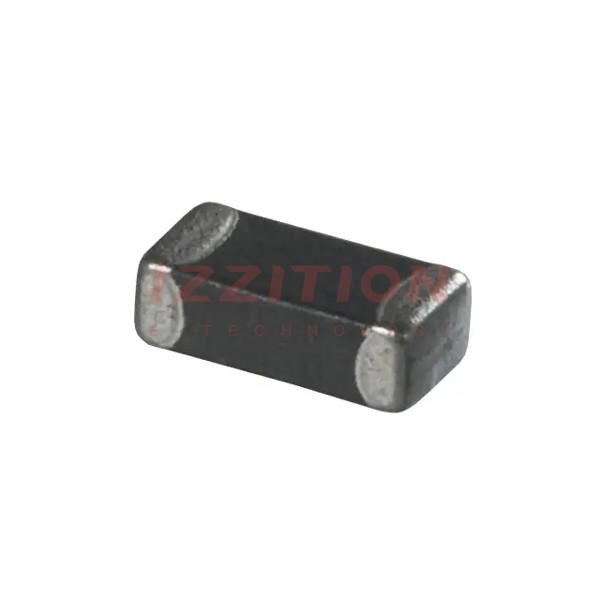

| Part Number | ILB1206ER801V | ILB1206ER201V | ILB1206ER301V | ILB1206ER501V | ILB1206ER601V | ILB1206ER800V |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active |
| Filter Type | - | - | - | - | - | - |
| Number of Lines | 1 | 1 | 1 | 1 | 1 | 1 |
| Impedance @ Frequency | 800 Ohms @ 100 MHz | 200 Ohms @ 100 MHz | 300 Ohms @ 100 MHz | 500 Ohms @ 100 MHz | 600 Ohms @ 100 MHz | 80 Ohms @ 100 MHz |
| Current Rating (Max) | 200mA | 300mA | 300mA | 200mA | 200mA | 400mA |
| DC Resistance (DCR) (Max) | 300mOhm | 200mOhm | 300mOhm | 300mOhm | 300mOhm | 200mOhm |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Features | - | - | - | - | - | - |
