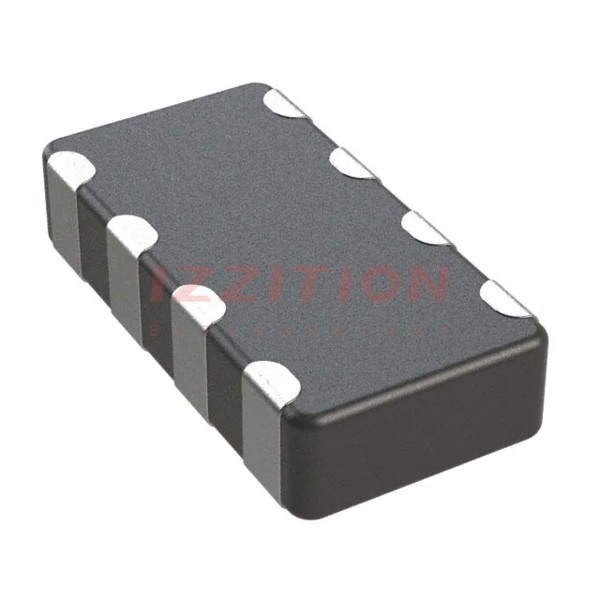

| Part Number | ILAS1206ER601V | ILAS1206ER301V | ILAS1206ER600V |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Filter Type | Signal Line | Signal Line | Signal Line |
| Number of Lines | 4 | 4 | 4 |
| Impedance @ Frequency | 600 Ohms @ 100 MHz | 300 Ohms @ 100 MHz | 60 Ohms @ 100 MHz |
| Current Rating (Max) | 200mA | 250mA | 400mA |
| DC Resistance (DCR) (Max) | 500mOhm | 400mOhm | 250mOhm |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 1206 (3216 Metric), Array, 8 PC Pad | 1206 (3216 Metric), Array, 8 PC Pad | 1206 (3216 Metric), Array, 8 PC Pad |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Features | - | - | - |
