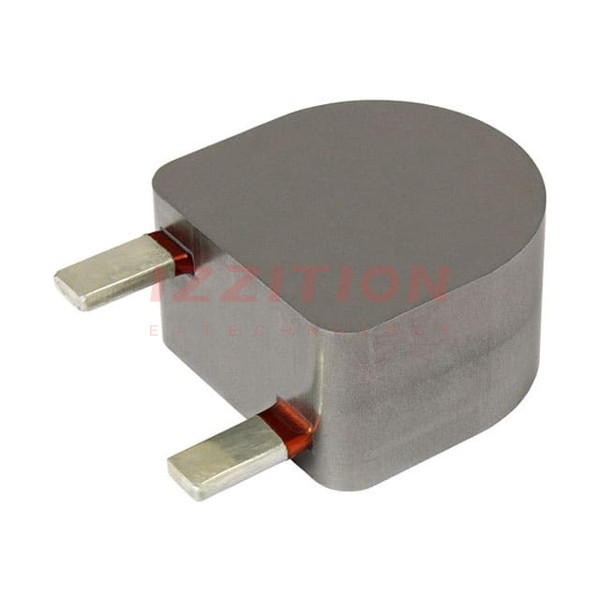

| Part Number | IHXL1500VZEB2R2M5A | IHXL1500VZEB2R2M51 |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | - | - |
| Inductance | 2.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 168 A | 168 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 0.34mOhm Max | 0.34mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 500 kHz | 500 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 1.500" L x 1.500" W (38.10mm x 38.10mm) | 1.500" L x 1.500" W (38.10mm x 38.10mm) |
| Height - Seated (Max) | 0.872" (22.15mm) | 0.872" (22.15mm) |
