IHTH1500TZEB220M5A
  • Share:

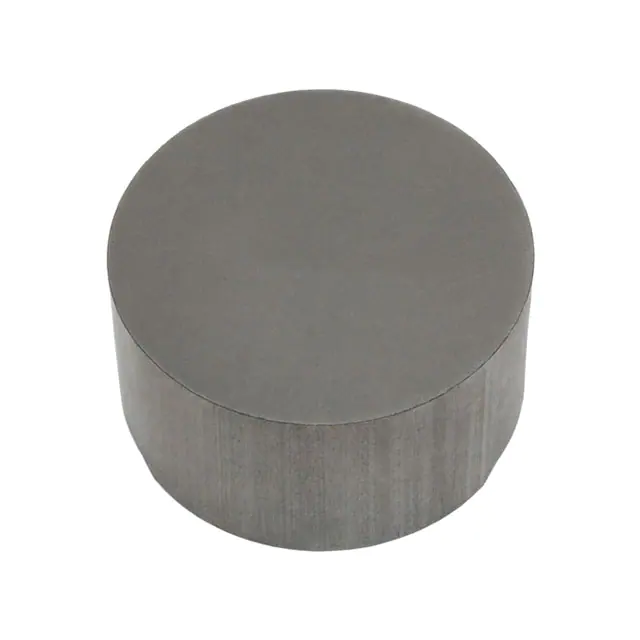

Vishay Dale IHTH1500TZEB220M5A

Manufacturer No:
IHTH1500TZEB220M5A
Manufacturer:
Vishay Dale
Package:
Bulk
Datasheet:
IHTH1500TZEB220M5A Datasheet
ECAD Model:
-
Description:
IHTH-1500TZ-5A 22 20% EB E2
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:-
Material - Core:Metal Composite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):34.4 A
Current - Saturation (Isat):59.78A
Shielding:Shielded
DC Resistance (DCR):3.9mOhm Max
Q @ Freq:-
Frequency - Self Resonant:3.5MHz
Ratings:-
Operating Temperature:-55°C ~ 155°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder, 4 Leads
Supplier Device Package:Radial
Size / Dimension:1.500" Dia (38.10mm)
Height - Seated (Max):0.780" (19.81mm)
0 Remaining View Similar

In Stock

$14.69
63

Please send RFQ , we will respond immediately.
