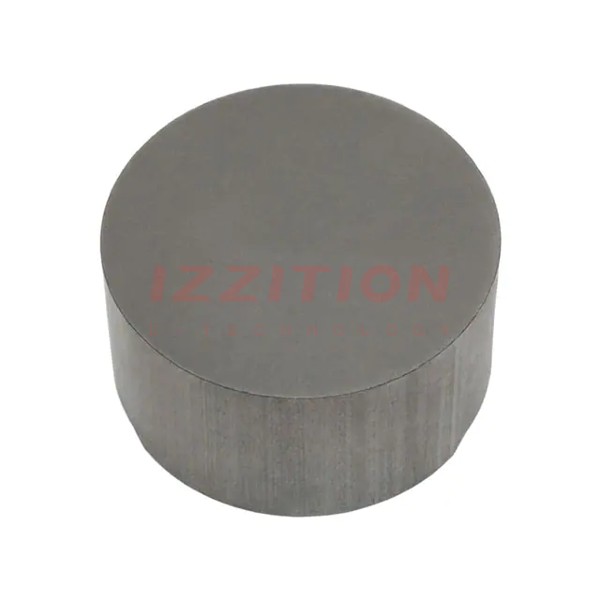

| Part Number | IHTH1500TZEB100M5A | IHTH1500TZEB101M5A |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 10 µH | 100 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 52.9 A | 12.2 A |
| Current - Saturation (Isat) | 85.2A | 33.7A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1.7mOhm Max | 22.6mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 5.7MHz | 1.2MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder, 4 Leads | Radial, Vertical Cylinder, 4 Leads |
| Supplier Device Package | Radial | Radial |
| Size / Dimension | 1.500" Dia (38.10mm) | 1.500" Dia (38.10mm) |
| Height - Seated (Max) | 0.780" (19.81mm) | 0.780" (19.81mm) |
