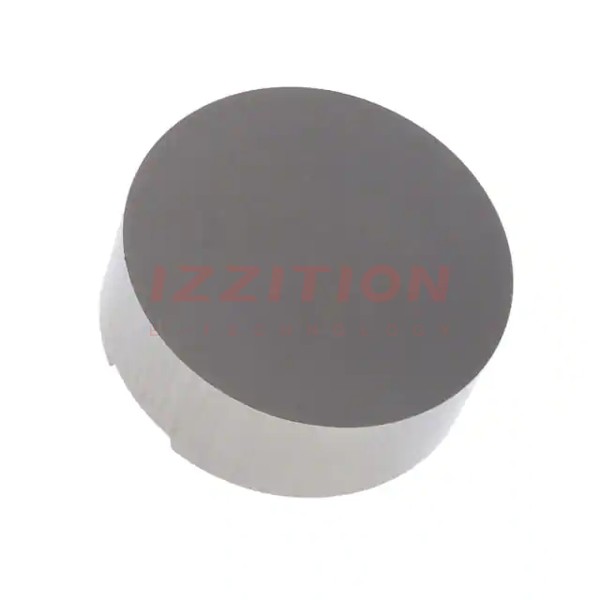

| Part Number | IHTH1125KZEB470M5A | IHTH1125MZEB470M5A |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Metal Composite | - |
| Inductance | 47 µH | 47 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 14 A | 14.7 A |
| Current - Saturation (Isat) | 16.2A | 16A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 14.6mOhm Max | 15.3mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 2.99MHz | 2.99MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 1.125" Dia (28.58mm) | 1.179" Dia (29.95mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.500" (12.70mm) |
