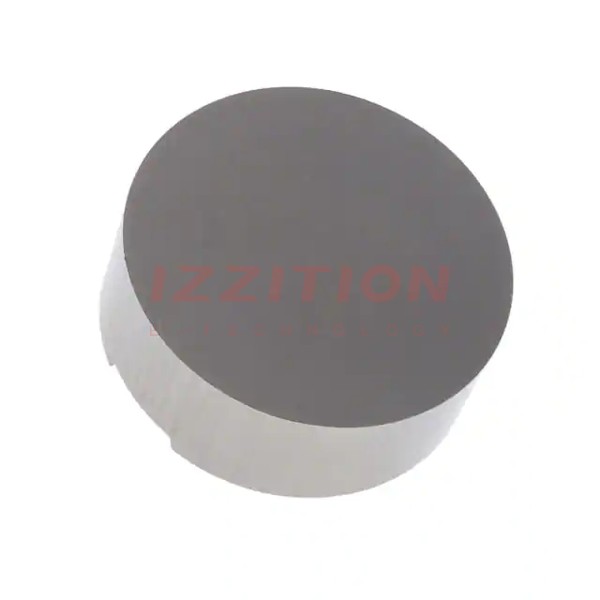

| Part Number | IHTH1125KZEB2R2M5A | IHTH1125KZEB8R2M5A |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 2.2 µH | 8.2 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 72 A | 34.5 A |
| Current - Saturation (Isat) | 64A | 32A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 0.77mOhm Max | 3mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 17.25MHz | 9.24MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 1.125" Dia (28.58mm) | 1.125" Dia (28.58mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.433" (11.00mm) |
