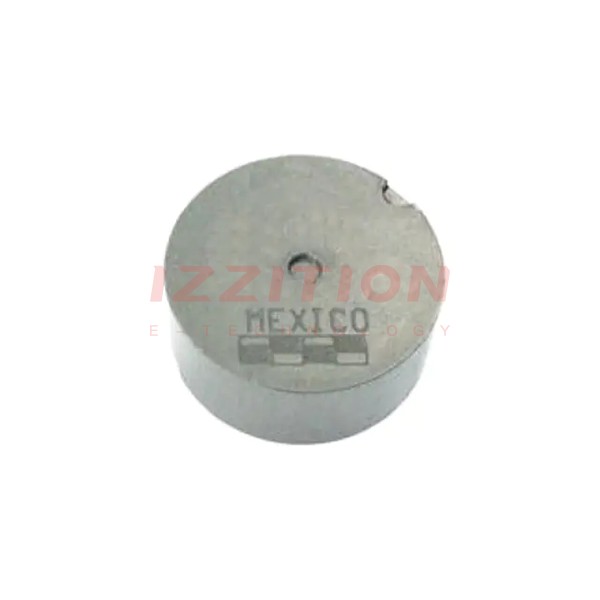

| Part Number | IHTH0750IZEB220M5A | IHTH0750IZEB820M5A |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 22 µH | 82 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 12.7 A | 5.2 A |
| Current - Saturation (Isat) | 11.5A | 6A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 13.22mOhm Max | 58.1mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 6.42MHz | 3.09MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder, 3 Leads |
| Supplier Device Package | - | - |
| Size / Dimension | 0.755" Dia (19.18mm) | 0.755" Dia (19.18mm) |
| Height - Seated (Max) | 0.354" (8.99mm) | 0.354" (8.99mm) |
