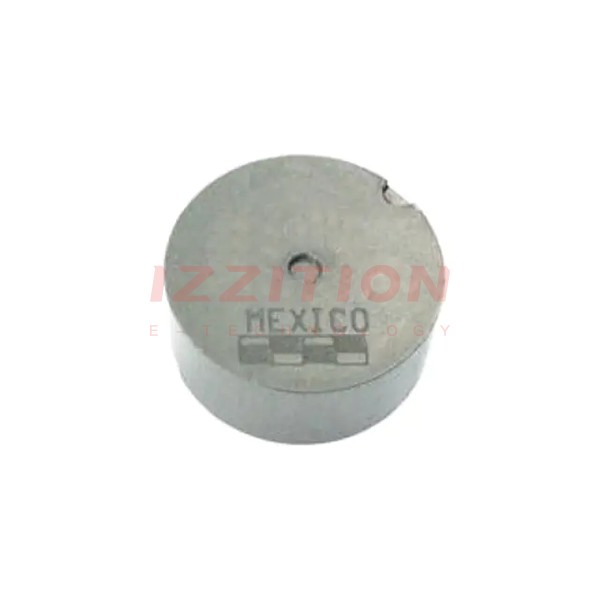

| Part Number | IHTH0750IZEB101M5A | IHTH0750IZEB100M5A |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 100 µH | 10 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 5 A | 17.7 A |
| Current - Saturation (Isat) | 5.2A | 13A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 64mOhm Max | 7.7mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 2.63MHz | 9.77MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder, 3 Leads | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 0.755" Dia (19.18mm) | 0.755" Dia (19.18mm) |
| Height - Seated (Max) | 0.354" (8.99mm) | 0.354" (8.99mm) |
