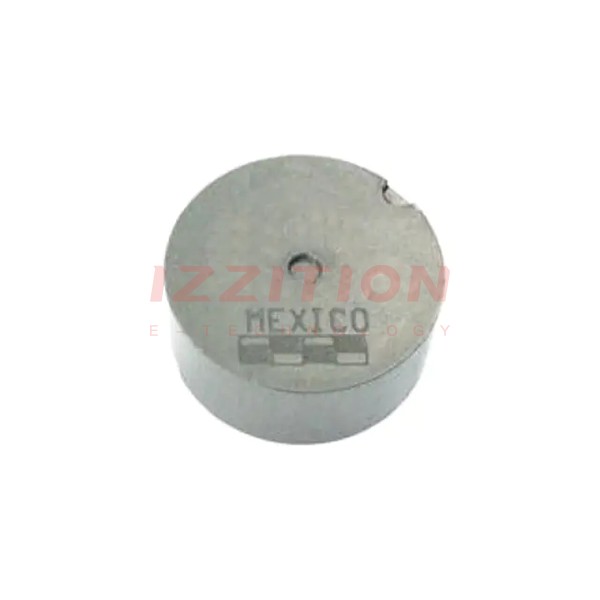

| Part Number | IHTH0750IZEB100M5A | IHTH0750IZEB1R0M5A | IHTH0750IZEB101M5A |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Metal Composite | Metal Composite | Metal Composite |
| Inductance | 10 µH | 1 µH | 100 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 17.7 A | 66 A | 5 A |
| Current - Saturation (Isat) | 13A | 44A | 5.2A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 7.7mOhm Max | 0.92mOhm Max | 64mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 9.77MHz | 35.7MHz | 2.63MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder, 3 Leads |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.755" Dia (19.18mm) | 0.755" Dia (19.18mm) | 0.755" Dia (19.18mm) |
| Height - Seated (Max) | 0.354" (8.99mm) | 0.354" (8.99mm) | 0.354" (8.99mm) |
