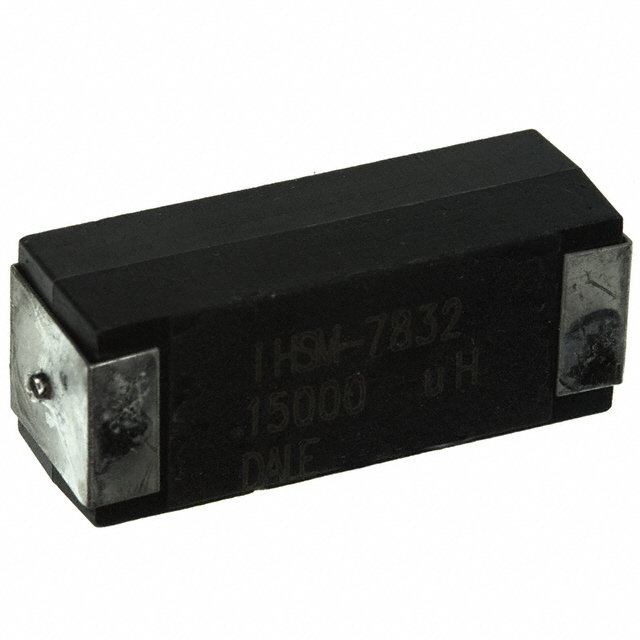

| Part Number | IHSM7832ER822L | IHSM7832ER8R2L | IHSM7832ER122L | IHSM7832ER222L | IHSM7832ER820L | IHSM7832ER821L |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 8.2 mH | 8.2 µH | 1.2 mH | 2.2 mH | 82 µH | 820 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 170 mA | 5.3 A | 460 mA | 310 mA | 1.9 A | 573 mA |
| Current - Saturation (Isat) | 72.5mA | 1.9A | 190mA | 135mA | 720mA | 230mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 21.8Ohm Max | 32mOhm Max | 2.68Ohm Max | 4.62Ohm Max | 184mOhm Max | 2.08Ohm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) |
| Height - Seated (Max) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) |
