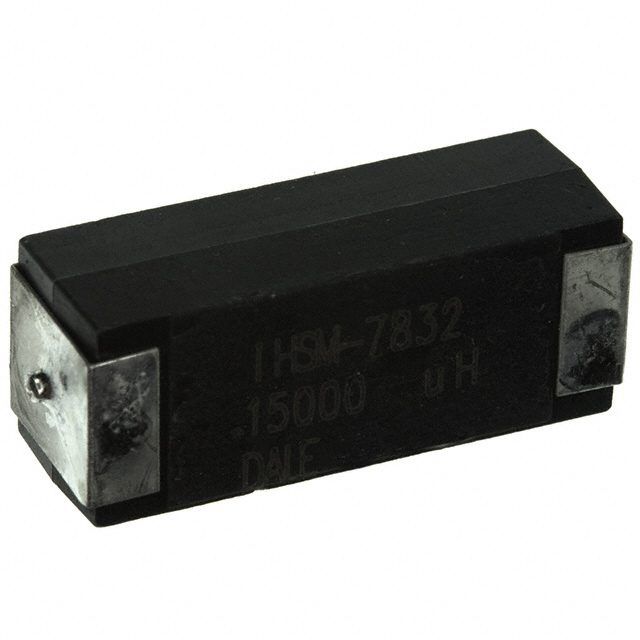

| Part Number | IHSM7832ER2R2L | IHSM7832ER2R7L | IHSM7832ER8R2L | IHSM5832ER2R2L | IHSM7832ER1R2L | IHSM7832ER222L | IHSM7832ER272L |
|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 2.2 µH | 2.7 µH | 8.2 µH | 2.2 µH | 1.2 µH | 2.2 mH | 2.7 mH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 8.4 A | 8.2 A | 5.3 A | 8.5 A | 8.8 A | 310 mA | 290 mA |
| Current - Saturation (Isat) | 3.6A | 3.2A | 1.9A | 4A | 4.8A | 135mA | 120mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 14mOhm Max | 16mOhm Max | 32mOhm Max | 15mOhm Max | 12mOhm Max | 4.62Ohm Max | 6.3Ohm Max |
| Q @ Freq | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) |
| Height - Seated (Max) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) |
