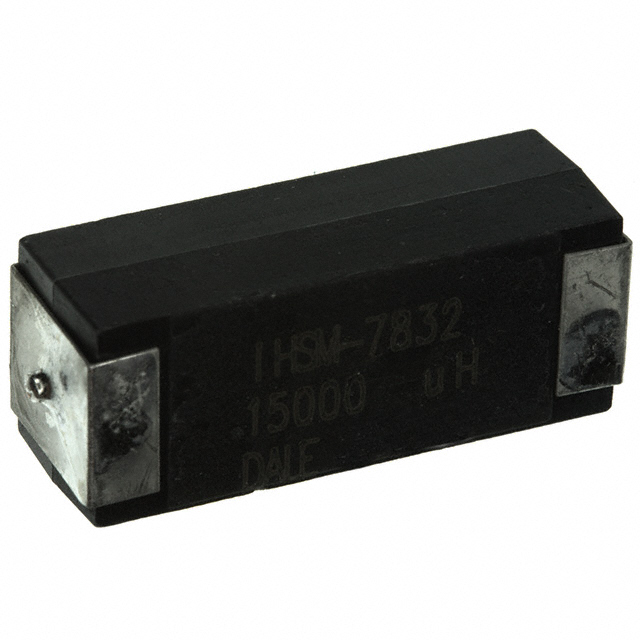

| Part Number | IHSM7832ER272L | IHSM7832ER2R2L | IHSM7832ER472L | IHSM5832ER272L | IHSM7832ER222L | IHSM7832ER270L | IHSM7832ER271L |
|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 2.7 mH | 2.2 µH | 4.7 mH | 2.7 mH | 2.2 mH | 27 µH | 270 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 290 mA | 8.4 A | 230 mA | 200 mA | 310 mA | 3.4 A | 950 mA |
| Current - Saturation (Isat) | 120mA | 3.6A | 90mA | 130mA | 135mA | 1.1A | 400mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 6.3Ohm Max | 14mOhm Max | 10.6Ohm Max | 11.29Ohm Max | 4.62Ohm Max | 74mOhm Max | 599mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) |
| Height - Seated (Max) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) |
