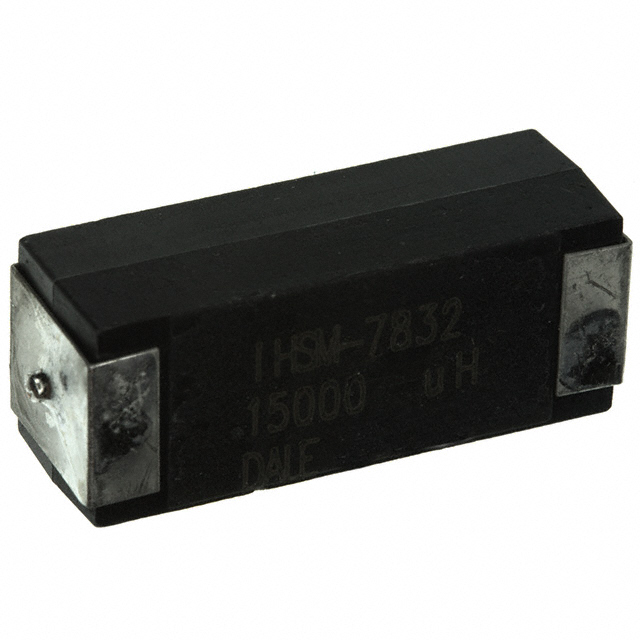

| Part Number | IHSM7832ER150L | IHSM7832ER153L | IHSM7832ER180L | IHSM7832ER1R0L | IHSM7832ER152L | IHSM7832ER151L | IHSM5832ER150L | IHSM7832ER100L | IHSM7832ER120L |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 15 mH | 18 µH | 1 µH | 1.5 mH | 150 µH | 15 µH | 10 µH | 12 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 4.5 A | 120 mA | 4.2 A | 9 A | 400 mA | 1.4 A | 3.5 A | 5 A | 4.8 A |
| Current - Saturation (Isat) | 1.4A | 55mA | 1.3A | 5.3A | 170mA | 540mA | 1.6A | 1.7A | 1.5A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 43mOhm Max | 37.8Ohm Max | 47mOhm Max | 11mOhm Max | 3.15Ohm Max | 362mOhm Max | 78mOhm Max | 36mOhm Max | 40mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) |
| Height - Seated (Max) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) |
