Please send RFQ , we will respond immediately.

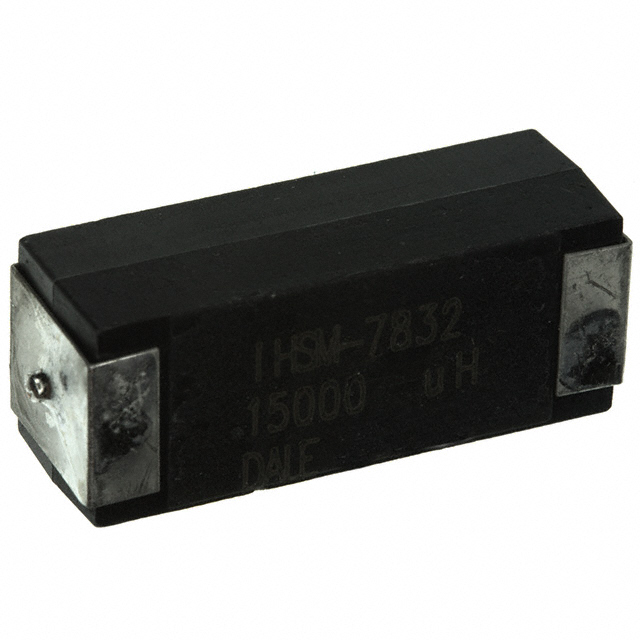

| Part Number | IHSM7832ER120L | IHSM7832ER121L | IHSM7832ER180L | IHSM7832ER1R0L | IHSM7832ER220L | IHSM7832ER150L | IHSM7832ER122L | IHSM7832ER820L | IHSM7832ER123L | IHSM5832ER120L | IHSM7832ER100L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 120 µH | 18 µH | 1 µH | 22 µH | 15 µH | 1.2 mH | 82 µH | 12 mH | 12 µH | 10 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 4.8 A | 1.5 A | 4.2 A | 9 A | 3.8 A | 4.5 A | 460 mA | 1.9 A | 140 mA | 3.9 A | 5 A |
| Current - Saturation (Isat) | 1.5A | 610mA | 1.3A | 5.3A | 1.2A | 1.4A | 190mA | 720mA | 62.5mA | 1.7A | 1.7A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 40mOhm Max | 305mOhm Max | 47mOhm Max | 11mOhm Max | 54mOhm Max | 43mOhm Max | 2.68Ohm Max | 184mOhm Max | 28.4Ohm Max | 68mOhm Max | 36mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.840" L x 0.320" W (21.34mm x 8.13mm) |
| Height - Seated (Max) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.285" (7.24mm) |
