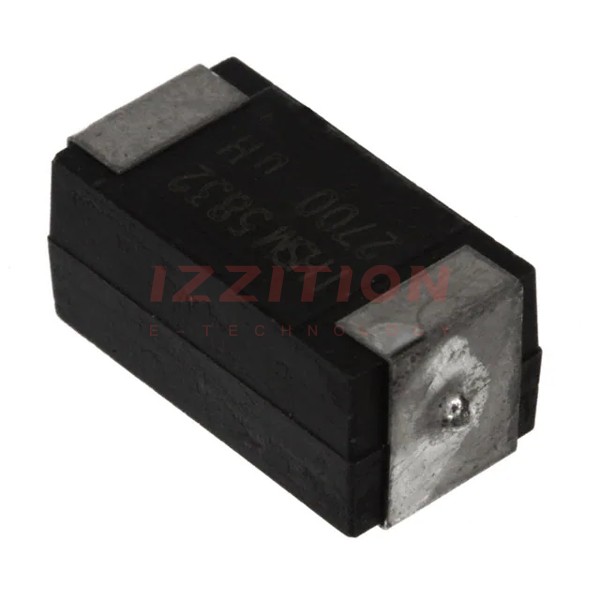

| Part Number | IHSM5832ER1R58L | IHSM5832ER1R5L |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1.8 µH | 1.5 µH |
| Tolerance | ±15% | ±15% |
| Current Rating (Amps) | 8.6 A | 8.7 A |
| Current - Saturation (Isat) | 4.4A | 5A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 13mOhm Max | 12mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.640" L x 0.320" W (16.26mm x 8.13mm) |
| Height - Seated (Max) | 0.285" (7.24mm) | 0.285" (7.24mm) |
