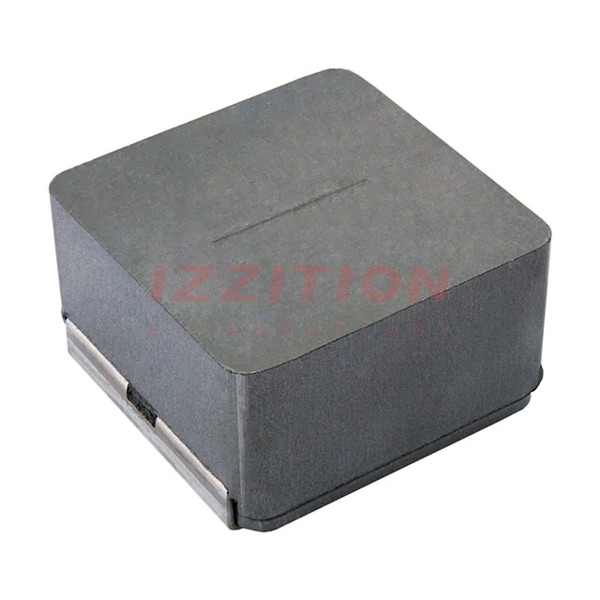

| Part Number | IHLP8787MZER820M51 | IHLP8787MZER820M5A | IHLP8787MZER220M51 |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | Molded | Molded | Molded |
| Material - Core | - | - | - |
| Inductance | 82 µH | 82 µH | 22 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 10.2 A | 10.2 A | 17.5 A |
| Current - Saturation (Isat) | 9A | 9A | 16A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 34.2mOhm Max | 34.2mOhm Max | 10.8mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 2.07MHz | 2.07MHz | 3.88MHz |
| Ratings | - | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.885" L x 0.866" W (22.48mm x 22.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) |
