Please send RFQ , we will respond immediately.

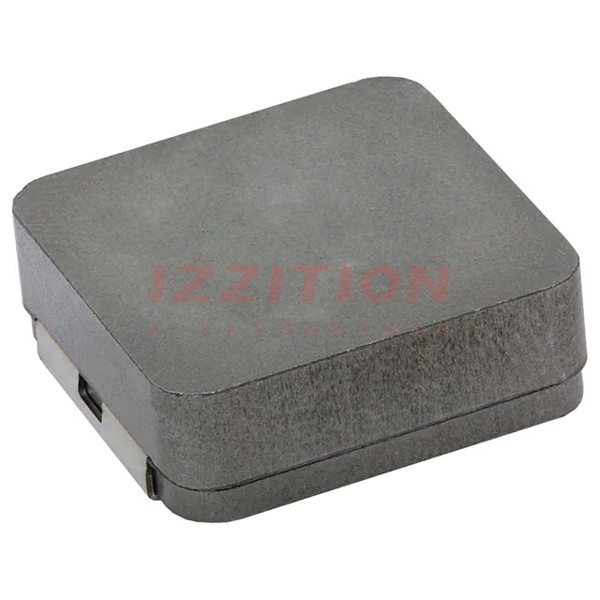

| Part Number | IHLP7575GZER1R5M51 | IHLP7575GZER1R5M5A | IHLP7575GZER1R0M51 |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | Molded | Molded | Molded |
| Material - Core | - | - | - |
| Inductance | 1.5 µH | 1.5 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 48 A | 48 A | 55 A |
| Current - Saturation (Isat) | 63A | 63A | 81A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.62mOhm Max | 1.62mOhm Max | 1.34mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 23MHz | 23MHz | 31.5MHz |
| Ratings | - | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.752" L x 0.750" W (19.10mm x 19.05mm) |
| Height - Seated (Max) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) |
