Please send RFQ , we will respond immediately.

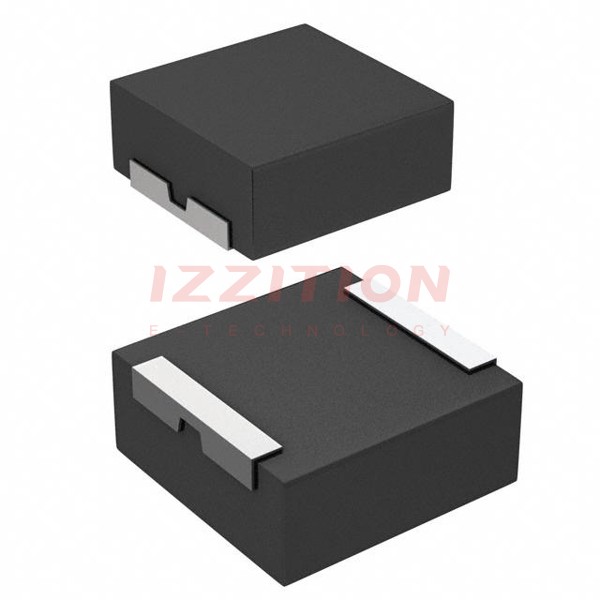

| Part Number | IHLP6767GZERR33M11 | IHLP6767GZERR33M01 |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | Molded | Molded |
| Material - Core | - | - |
| Inductance | 330 nH | 330 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 75.5 A | 65 A |
| Current - Saturation (Isat) | 55A | 126A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 0.82mOhm Max | 0.82mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 78MHz | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.675" L x 0.675" W (17.15mm x 17.15mm) |
| Height - Seated (Max) | 0.276" (7.00mm) | 0.276" (7.00mm) |
