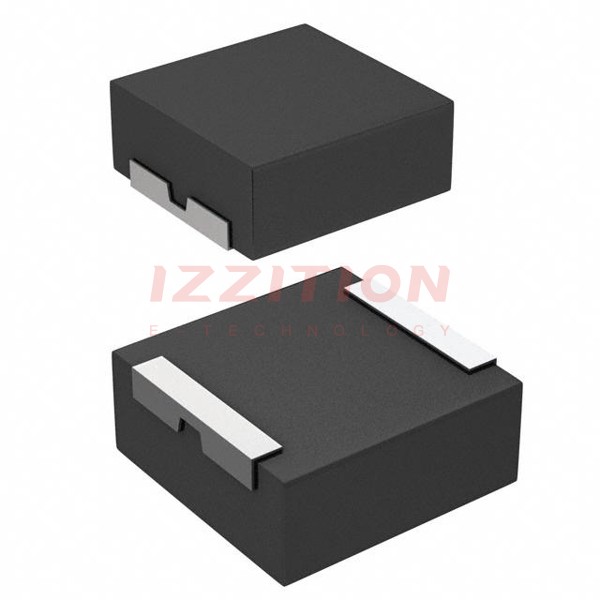

| Part Number | IHLP6767GZER2R2M11 | IHLP6767GZER8R2M11 | IHLP6767GZER2R2M51 | IHLP6767DZER2R2M11 | IHLP6767GZER2R2M01 |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded |
| Material - Core | - | - | - | - | - |
| Inductance | 2.2 µH | 8.2 µH | 2.2 µH | 2.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 43.5 A | 21 A | 38.5 A | 26 A | 35 A |
| Current - Saturation (Isat) | 28A | 18A | 38A | 19A | 62A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.98mOhm Max | 8.1mOhm Max | 2.41mOhm Max | 5.03mOhm Max | 2.53mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | 19MHz | 10MHz | 19.8MHz | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 155°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.675" L x 0.675" W (17.15mm x 17.15mm) |
| Height - Seated (Max) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.157" (4.00mm) | 0.276" (7.00mm) |
