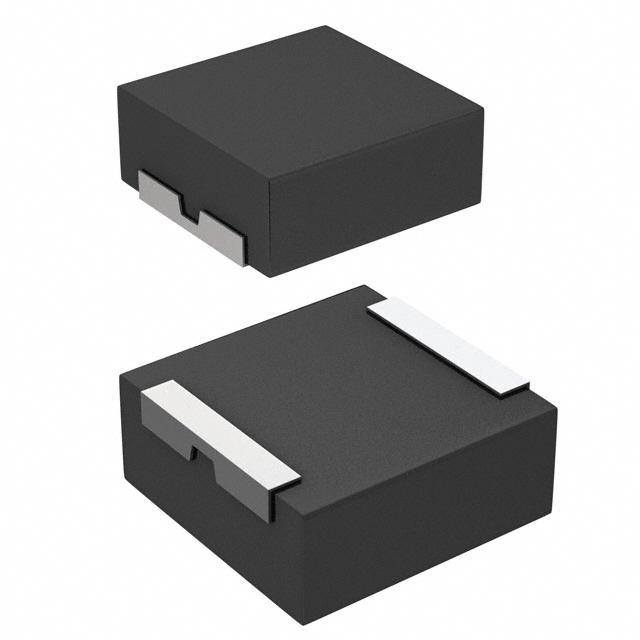

| Part Number | IHLP6767GZER1R0M11 | IHLP6767GZER1R0M51 | IHLP6767GZER1R5M11 | IHLP6767GZER1R8M11 | IHLP6767DZER1R0M11 | IHLP6767GZER100M11 | IHLP6767GZER150M11 | IHLP6767GZER180M11 | IHLP6767GZER1R0M01 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | - | - | - | - | - | - | - | - | - |
| Inductance | 1 µH | 1 µH | 1.5 µH | 1.8 µH | 1 µH | 10 µH | 15 µH | 18 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 55.5 A | 53 A | 48 A | - | 41 A | 19 A | 14 A | - | 48 A |
| Current - Saturation (Isat) | 32A | 42A | 31A | - | 27.5A | 17A | 12A | - | 73A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.27mOhm Max | 1.46mOhm Max | 1.62mOhm Max | - | 2.05mOhm Max | 9.33mOhm Max | 14.4mOhm Max | - | 1.38mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | 34MHz | 35.5MHz | 26MHz | - | - | 8MHz | 7.5MHz | - | - |
| Ratings | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 155°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.675" L x 0.675" W (17.15mm x 17.15mm) |
| Height - Seated (Max) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.157" (4.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) |
