Please send RFQ , we will respond immediately.

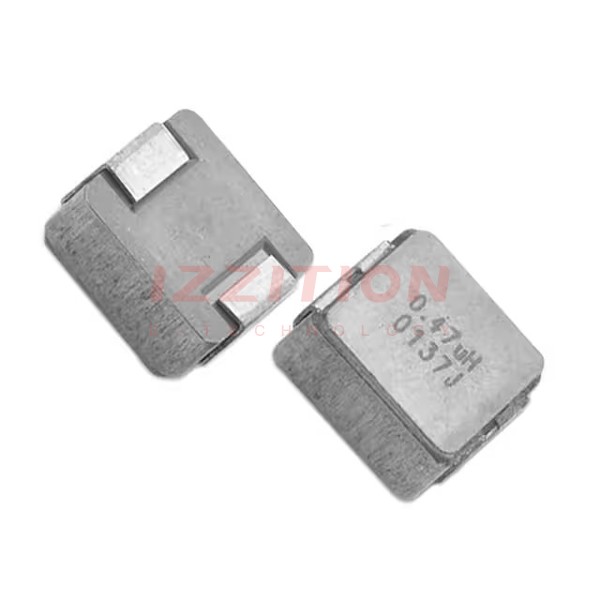

| Part Number | IHLP6767GZER100M8A | IHLP6767GZER1R0M8A | IHLP6767GZER100M5A |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | Molded | Molded | Molded |
| Material - Core | - | - | - |
| Inductance | 10 µH | 1 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 16 A | 53 A | 16 A |
| Current - Saturation (Isat) | 13A | 42A | 20A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 10.91mOhm Max | 1.46mOhm Max | 10.91mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 7.7MHz | 35.5MHz | 7.7MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 180°C | -55°C ~ 180°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.675" L x 0.675" W (17.15mm x 17.15mm) |
| Height - Seated (Max) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) |
