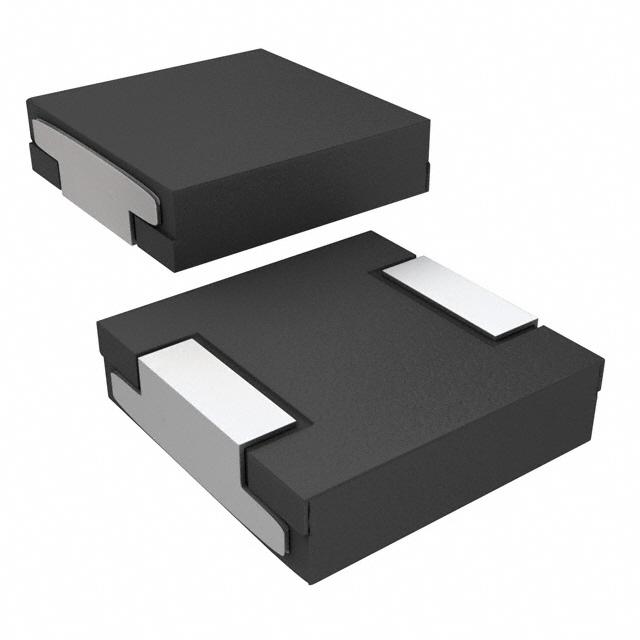

| Part Number | IHLP5050FDERR15M01 | IHLP5050FDERR10M01 |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | Molded | Molded |
| Material - Core | - | - |
| Inductance | 150 nH | 100 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 55 A | 60 A |
| Current - Saturation (Isat) | 118A | 120A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 0.6mOhm Max | 0.5mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.520" L x 0.508" W (13.20mm x 12.90mm) |
| Height - Seated (Max) | 0.256" (6.50mm) | 0.256" (6.50mm) |
