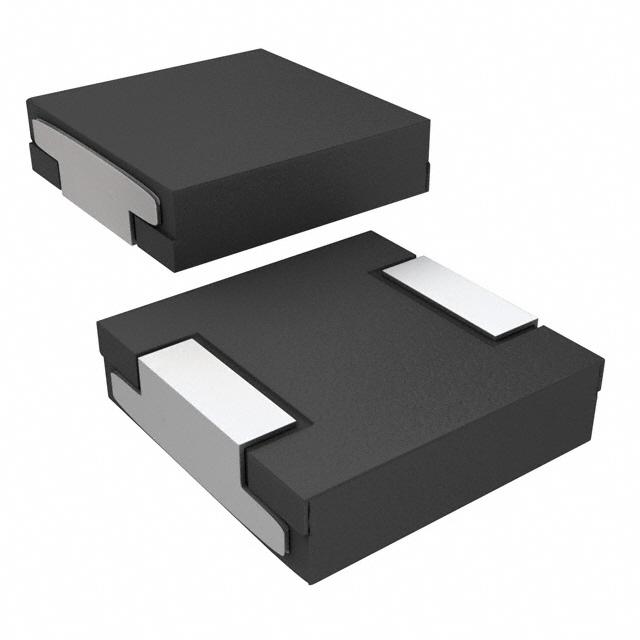

| Part Number | IHLP5050FDER6R8M5A | IHLP5050FDER7R8M5A | IHLP5050FDER1R8M5A | IHLP5050FDER6R8M51 |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded |
| Material - Core | - | - | - | - |
| Inductance | 6.8 µH | 7.8 µH | 1.8 µH | 6.8 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 14.2 A | 13.5 A | 26 A | 14.2 A |
| Current - Saturation (Isat) | 8.7A | 8.5A | 22.5A | 8.7A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 12.09mOhm Max | 13.48mOhm Max | 2.94mOhm Max | 12.09mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 13.4MHz | 13.6MHz | 25.9MHz | 13.4MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.522" L x 0.508" W (13.26mm x 12.90mm) |
| Height - Seated (Max) | 0.252" (6.40mm) | 0.252" (6.40mm) | 0.252" (6.40mm) | 0.252" (6.40mm) |
