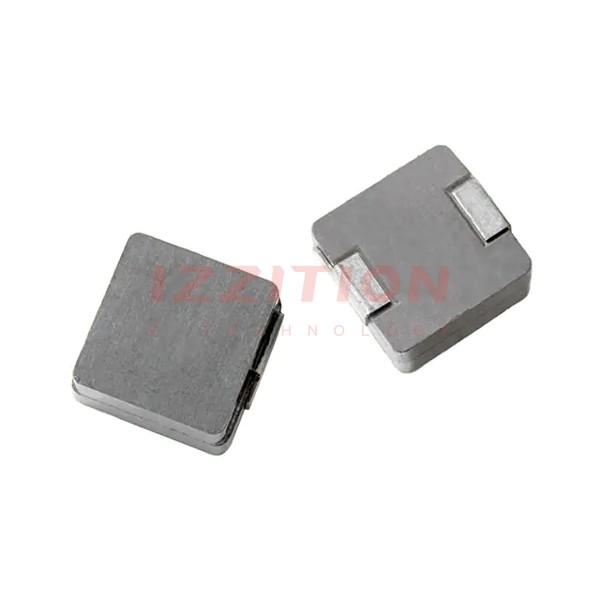

| Part Number | IHLP5050FDER3R3MA1 | IHLP5050FDER3R3M01 | IHLP5050FDER3R3M51 |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | - | Molded | Molded |
| Material - Core | Metal Composite | - | - |
| Inductance | 3.3 µH | 3.3 µH | 3.3 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 18 A | 18 A | 20.2 A |
| Current - Saturation (Isat) | 35A | 35A | 16.7A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 6.8mOhm Max | 6.8mOhm Max | 5.44mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | 17.8MHz |
| Ratings | AEC-Q200 | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.525" L x 0.508" W (13.34mm x 12.90mm) | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.522" L x 0.508" W (13.26mm x 12.90mm) |
| Height - Seated (Max) | 0.252" (6.40mm) | 0.256" (6.50mm) | 0.252" (6.40mm) |
