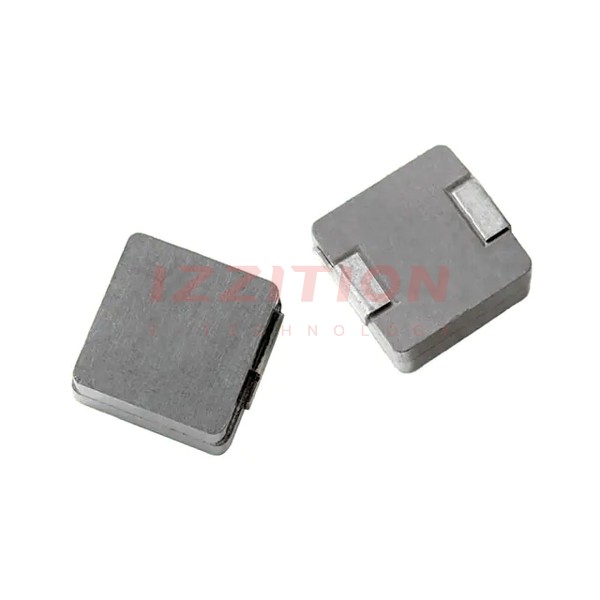

| Part Number | IHLP5050FDER220M8A | IHLP5050FDER220M5A |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | - | Molded |
| Material - Core | Metal Composite | - |
| Inductance | 22 µH | 22 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 9 A | 8.3 A |
| Current - Saturation (Isat) | 6.3A | 5.5A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 33.49mOhm Max | 33.49mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 6.6MHz | 6.43MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 180°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.522" L x 0.508" W (13.26mm x 12.90mm) |
| Height - Seated (Max) | 0.252" (6.40mm) | 0.252" (6.40mm) |
