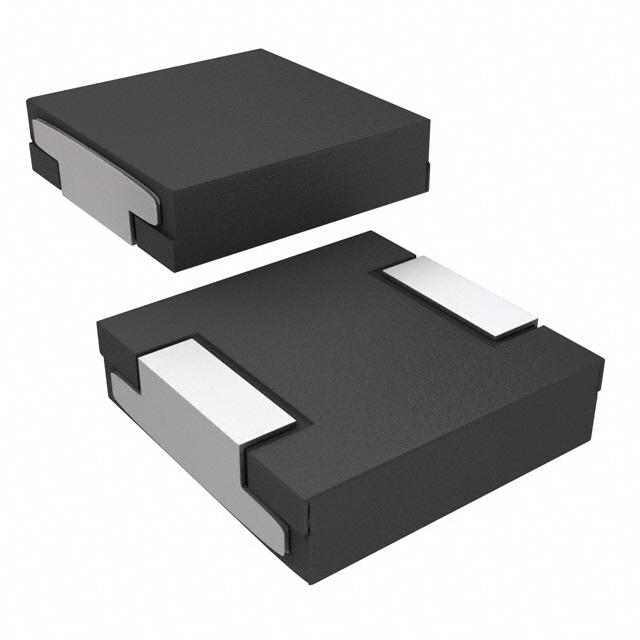

| Part Number | IHLP5050FDER220M51 | IHLP5050FDER220M5A | IHLP5050FDER120M51 |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | Molded | Molded | Molded |
| Material - Core | - | - | - |
| Inductance | 22 µH | 22 µH | 12 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 8.3 A | 8.3 A | 10.6 A |
| Current - Saturation (Isat) | 5.5A | 5.5A | 6.9A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 33.49mOhm Max | 33.49mOhm Max | 20.33mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | 6.43MHz | 7.59MHz |
| Ratings | - | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.522" L x 0.508" W (13.26mm x 12.90mm) |
| Height - Seated (Max) | 0.252" (6.40mm) | 0.252" (6.40mm) | 0.252" (6.40mm) |
