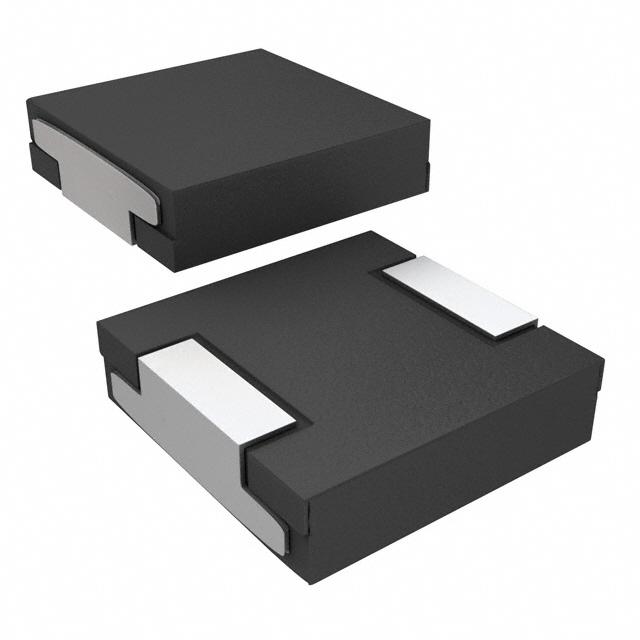

| Part Number | IHLP5050FDER1R5M51 | IHLP5050FDER1R8M51 | IHLP5050FDER1R5M5A | IHLP5050FDER1R0M51 | IHLP5050FDER1R2M51 | IHLP5050FDER1R5M01 |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | - | - | - | - | - | - |
| Inductance | 1.5 µH | 1.8 µH | 1.5 µH | 1 µH | 1.2 µH | 1.5 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 27.5 A | 26 A | 27.5 A | 40 A | 29 A | 27 A |
| Current - Saturation (Isat) | 23.5A | 22.5A | 23.5A | 26A | 24.5A | 45A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 2.57mOhm Max | 2.94mOhm Max | 2.57mOhm Max | 1.77mOhm Max | 2.12mOhm Max | 3mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | 29.2MHz | 25.9MHz | 29.2MHz | 33.4MHz | 32MHz | - |
| Ratings | - | - | AEC-Q200 | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.520" L x 0.508" W (13.20mm x 12.90mm) |
| Height - Seated (Max) | 0.252" (6.40mm) | 0.252" (6.40mm) | 0.252" (6.40mm) | 0.252" (6.40mm) | 0.252" (6.40mm) | 0.256" (6.50mm) |
