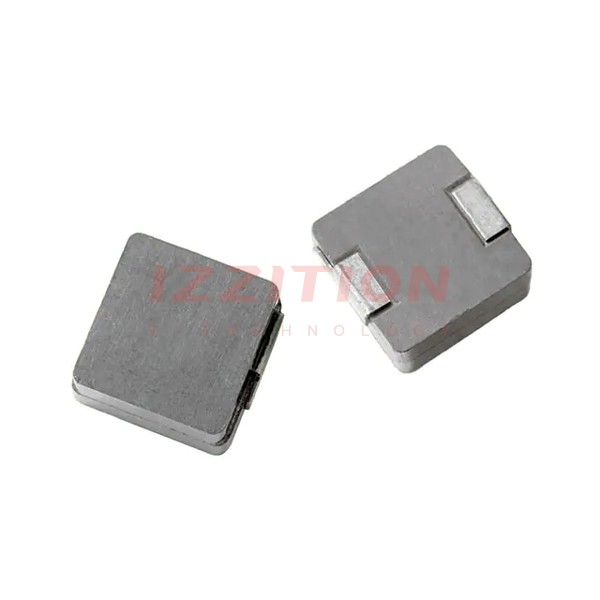

| Part Number | IHLP5050FDER150M8A | IHLP5050FDER1R0M8A | IHLP5050FDER100M8A | IHLP5050FDER150M5A |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active |
| Type | - | - | - | Molded |
| Material - Core | Metal Composite | Metal Composite | Metal Composite | - |
| Inductance | 15 µH | 1 µH | 10 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 10.1 A | 40 A | 12.1 A | 8.7 A |
| Current - Saturation (Isat) | 7.7A | 26A | 7.8A | 6.8A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 25.68mOhm Max | 1.77mOhm Max | 17.76mOhm Max | 25.68mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 8.8MHz | 33.4MHz | 10.7MHz | 8.3MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 180°C | -55°C ~ 180°C | -55°C ~ 180°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.522" L x 0.508" W (13.26mm x 12.90mm) |
| Height - Seated (Max) | 0.252" (6.40mm) | 0.252" (6.40mm) | 0.252" (6.40mm) | 0.252" (6.40mm) |
