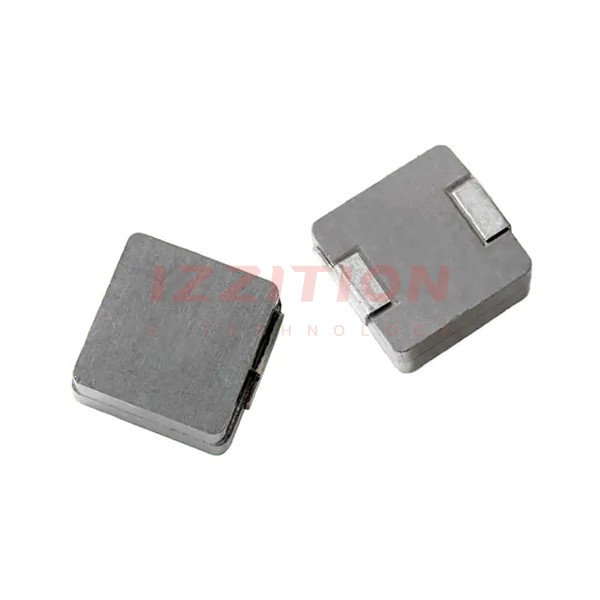

| Part Number | IHLP5050FDER100MA1 | IHLP5050FDER100M01 | IHLP5050FDER100M51 |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | - | Molded | Molded |
| Material - Core | Metal Composite | - | - |
| Inductance | 10 µH | 10 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 10 A | 10 A | 10.9 A |
| Current - Saturation (Isat) | 15.5A | 15.5A | 7.2A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 17.2mOhm Max | 17.2mOhm Max | 17.76mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | 10.7MHz |
| Ratings | AEC-Q200 | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.525" L x 0.508" W (13.34mm x 12.90mm) | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.522" L x 0.508" W (13.26mm x 12.90mm) |
| Height - Seated (Max) | 0.252" (6.40mm) | 0.256" (6.50mm) | 0.252" (6.40mm) |
