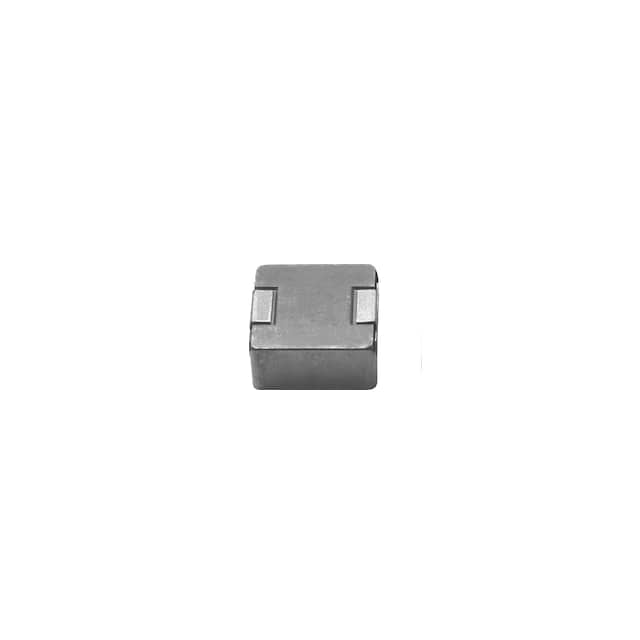

| Part Number | IHLP5050EZER1R0M5A | IHLP5050EZER1R8M5A | IHLP5050EZER3R0M5A | IHLP5050EZER1R5M5A | IHLP5050EZER100M5A | IHLP5050EZER150M5A |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | - | - | - | - | - | - |
| Inductance | 1 µH | 1.8 µH | 3 µH | 1.5 µH | 10 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 36.64 A | 28.62 A | 17.9 A | 31.27 A | 10.1 A | 7.7 A |
| Current - Saturation (Isat) | 28A | 26.4A | 18.5A | 28A | 9A | 7.5A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 2.14mOhm Max | 3.58mOhm Max | 6.31mOhm Max | 2.94mOhm Max | 20.1mOhm Max | 29.7mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | 37.2MHz | 26.4MHz | 20.4MHz | 30.6MHz | 11MHz | 9.6MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.530" L x 0.508" W (13.46mm x 12.90mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
