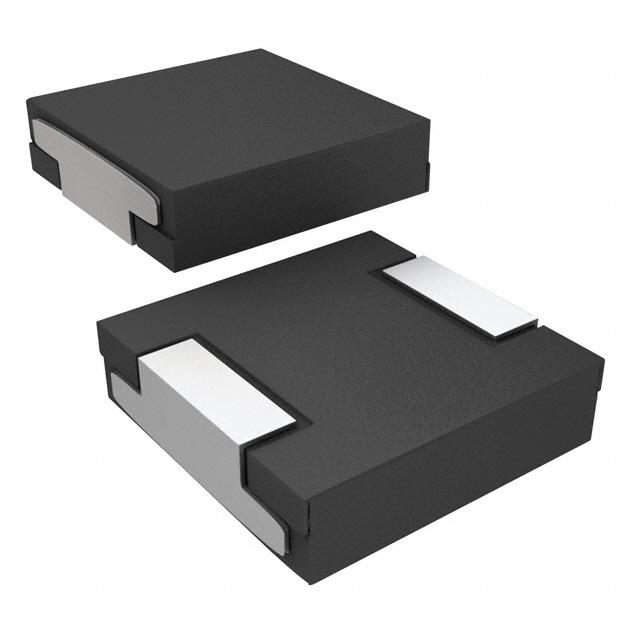

| Part Number | IHLP5050CEER1R0M07 | IHLP5050CEER1R5M07 | IHLP5050CEER100M07 | IHLP5050CEER1R0M01 | IHLP5050CEER1R0M06 |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded |
| Material - Core | - | - | - | - | - |
| Inductance | 1 µH | 1.5 µH | 10 µH | 1 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 24 A | 19 A | 7 A | 24 A | 24 A |
| Current - Saturation (Isat) | 40A | 35A | 14A | 40A | 40A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 3.21mOhm | 4.97mOhm | 30.86mOhm | 3.5mOhm Max | 3.21mOhm |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.520" L x 0.508" W (13.20mm x 12.90mm) |
| Height - Seated (Max) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
