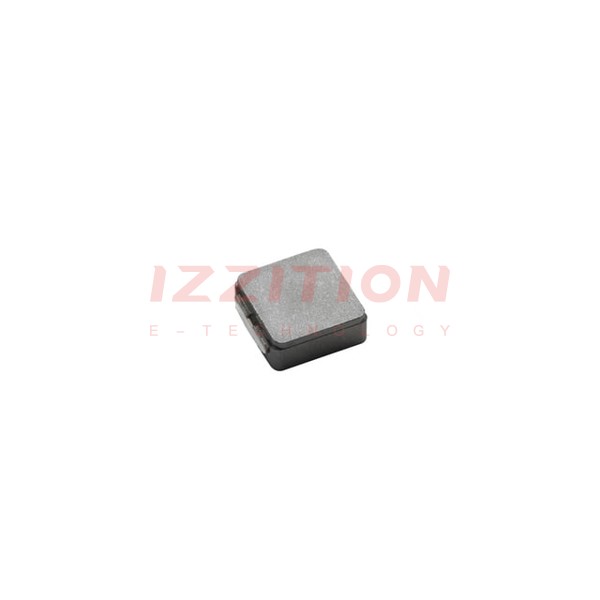

| Part Number | IHLP4040DZETR56M01 | IHLP4040DZEBR56M01 | IHLP4040DZERR56M01 | IHLP4040DZETR36M01 |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| Type | Molded | Molded | Molded | Molded |
| Material - Core | - | - | - | - |
| Inductance | 560 nH | 560 nH | 560 nH | 360 nH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 27.5 A | 27.5 A | 27.5 A | 31.5 A |
| Current - Saturation (Isat) | 49A | 49A | 49A | 60A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.8mOhm Max | 1.95mOhm Max | 1.95mOhm Max | 1.4mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | 4040 | 4040 | 4040 | 4040 |
| Size / Dimension | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
