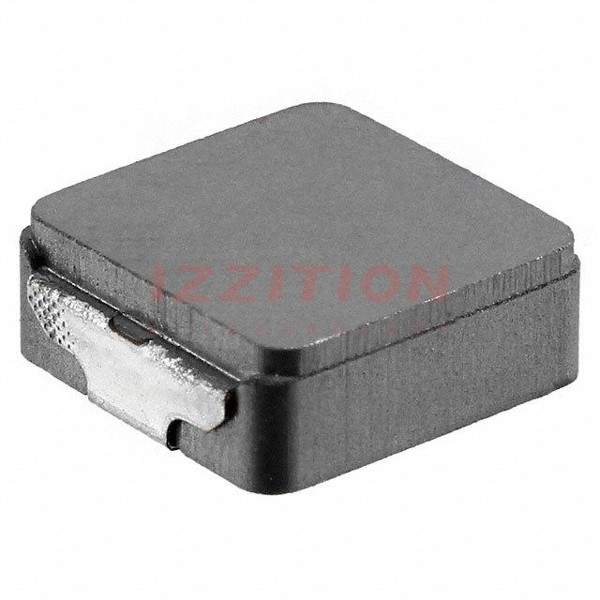

| Part Number | IHLP4040DZERR47M8A | IHLP4040DZERR47M5A |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | Molded | Molded |
| Material - Core | - | - |
| Inductance | 470 nH | 470 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 30 A | 30 A |
| Current - Saturation (Isat) | 28.5A | 28.5A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1.66mOhm Max | 1.66mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 59.1MHz | 72.1MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 180°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | 4040 | 4040 |
| Size / Dimension | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) |
