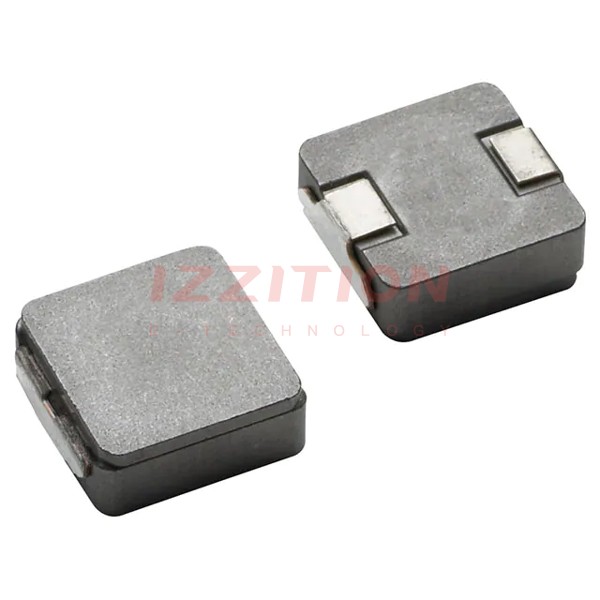

| Part Number | IHLP4040DZER680M5A | IHLP4040DZER680M8A |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 68 µH | 68 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 2.4 A | 2.4 A |
| Current - Saturation (Isat) | 3.5A | 3.5A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 252mOhm Max | 252mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 4.02MHz | 4.02MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 180°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) |
