Vishay Dale-IHLP4040DZER1R0M51 - Fixed Inductors Product Specifications and Latest Quotes

Part Number	IHLP4040DZER1R0M51	IHLP4040DZER1R0M5A	IHLP4040DZER100M51	IHLP4040DZER150M51	IHLP4040DZER1R0M01	IHLP4040DZER1R0M11
Manufacturer	Vishay Dale	Vishay Dale	Vishay Dale	Vishay Dale	Vishay Dale	Vishay Dale
Product Status	Active	Active	Active	Active	Active	Active
Type	Molded	Molded	Molded	Molded	Molded	Molded
Material - Core	-	-	-	-	-	-
Inductance	1 µH	1 µH	10 µH	15 µH	1 µH	1 µH
Tolerance	±20%	±20%	±20%	±20%	±20%	±20%
Current Rating (Amps)	23.5 A	23.5 A	6.5 A	5.1 A	17.5 A	25 A
Current - Saturation (Isat)	24A	24A	8.5A	7.7A	36A	20A
Shielding	Shielded	Shielded	Shielded	Shielded	Shielded	Shielded
DC Resistance (DCR)	3.07mOhm Max	3.07mOhm Max	33.06mOhm Max	50.29mOhm Max	4.1mOhm Max	2.5mOhm Max
Q @ Freq	-	-	-	-	-	-
Frequency - Self Resonant	37.2MHz	37.2MHz	11.5MHz	10.4MHz	-	-
Ratings	-	AEC-Q200	-	-	-	-
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz
Features	-	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard
Supplier Device Package	4040	4040	4040	4040	4040	4040
Size / Dimension	0.425" L x 0.400" W (10.80mm x 10.16mm)	0.425" L x 0.400" W (10.80mm x 10.16mm)	0.425" L x 0.400" W (10.80mm x 10.16mm)	0.425" L x 0.400" W (10.80mm x 10.16mm)	0.425" L x 0.400" W (10.80mm x 10.16mm)	0.425" L x 0.400" W (10.80mm x 10.16mm)
Height - Seated (Max)	0.157" (4.00mm)	0.157" (4.00mm)	0.157" (4.00mm)	0.157" (4.00mm)	0.157" (4.00mm)	0.157" (4.00mm)

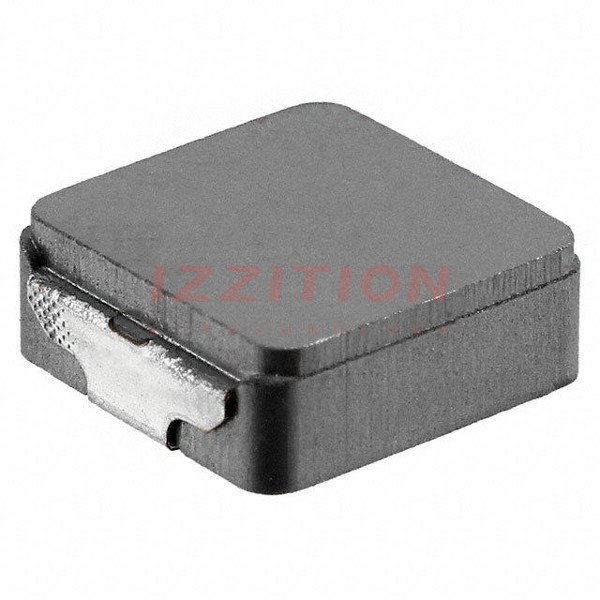

Vishay Dale IHLP4040DZER1R0M51
