Please send RFQ , we will respond immediately.

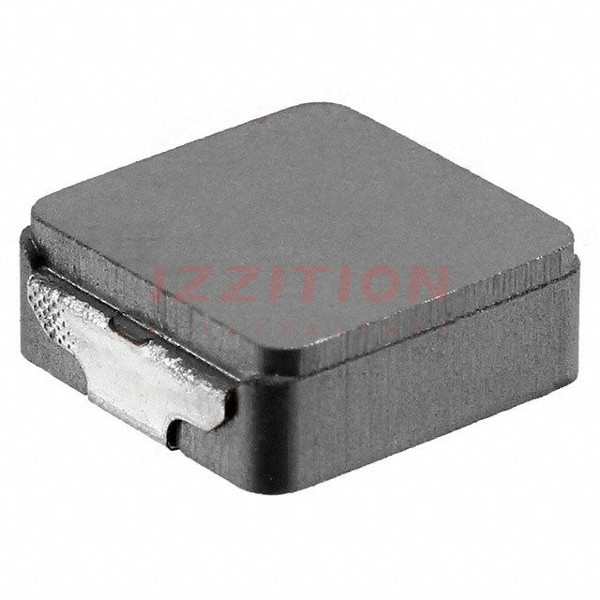

| Part Number | IHLP4040DZER100M5A | IHLP4040DZER1R0M5A | IHLP4040DZER150M5A | IHLP4040DZER100M8A | IHLP4040DZER100M1A | IHLP4040DZER100M51 |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | - | - | Molded |
| Material - Core | - | - | - | Metal Composite | Metal Composite | - |
| Inductance | 10 µH | 1 µH | 15 µH | 10 µH | 10 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 6.5 A | 23.5 A | 5.1 A | 6.5 A | 7.5 A | 6.5 A |
| Current - Saturation (Isat) | 8.5A | 24A | 7.7A | 8.5A | 7.1A | 8.5A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 33.06mOhm Max | 3.07mOhm Max | 50.29mOhm Max | 33.06mOhm Max | 30.5mOhm Max | 33.06mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | 11.5MHz | 37.2MHz | 10.4MHz | 11.5MHz | - | 11.5MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 180°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | 4040 | 4040 | 4040 | - | - | 4040 |
| Size / Dimension | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
