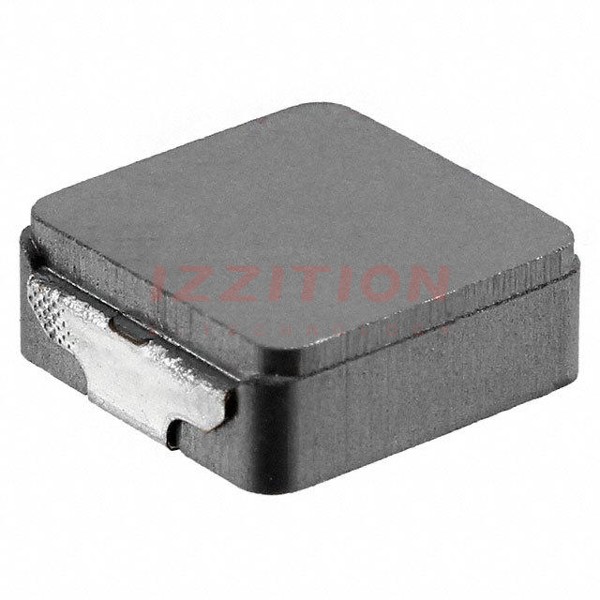

| Part Number | IHLP4040DZER100M11 | IHLP4040DZER1R0M11 | IHLP4040DZER100MA1 | IHLP4040DZER100M1A | IHLP4040DZET100M11 | IHLP4040DZER101M11 | IHLP4040DZER150M11 | IHLP4040DZER100M51 | IHLP4040DZEB100M11 | IHLP4040DZER100M01 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active | Active | Obsolete | Active |
| Type | Molded | Molded | - | - | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | - | - | Metal Composite | Metal Composite | - | - | - | - | - | - |
| Inductance | 10 µH | 1 µH | 10 µH | 10 µH | 10 µH | 100 µH | 15 µH | 10 µH | 10 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 7.5 A | 25 A | 6.8 A | 7.5 A | 7.5 A | 2.5 A | 6.25 A | 6.5 A | 7.5 A | 6.8 A |
| Current - Saturation (Isat) | 7.1A | 20A | 12A | 7.1A | 7.1A | 2.25A | 6A | 8.5A | 7.1A | 12A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 30.5mOhm Max | 2.5mOhm Max | 36.5mOhm Max | 30.5mOhm Max | 30.5mOhm Max | 270mOhm Max | 45mOhm Max | 33.06mOhm Max | 30.5mOhm Max | 36.5mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | 11.5MHz | - | - |
| Ratings | - | - | AEC-Q200 | AEC-Q200 | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | 4040 | 4040 | - | - | 4040 | 4040 | 4040 | 4040 | 4040 | 4040 |
| Size / Dimension | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
