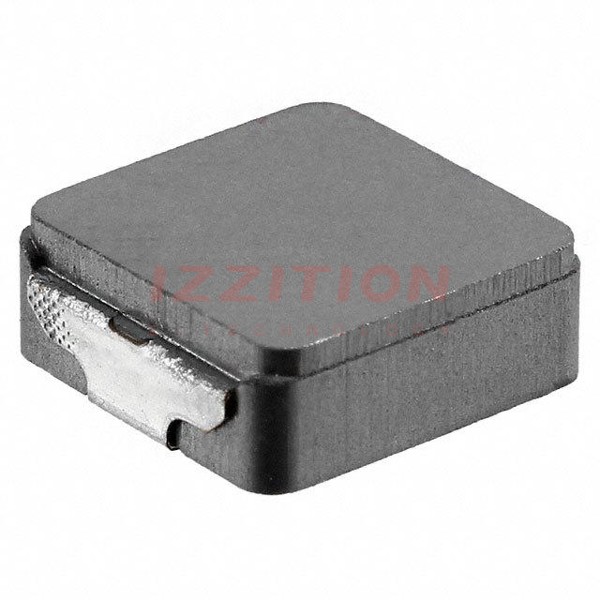

| Part Number | IHLP4040DZEB1R0M01 | IHLP4040DZER1R0M01 | IHLP4040DZET1R0M01 | IHLP4040DZEB1R5M01 | IHLP4040DZEB1R0M11 | IHLP4040DZEB100M01 |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | - | - | - | - | - | - |
| Inductance | 1 µH | 1 µH | 1 µH | 1.5 µH | 1 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 17.5 A | 17.5 A | 17.5 A | 15 A | 25 A | 6.8 A |
| Current - Saturation (Isat) | 36A | 36A | 36A | 27.5A | 20A | 12A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 4.1mOhm Max | 4.1mOhm Max | 4.1mOhm Max | 5.8mOhm Max | 2.5mOhm Max | 36.5mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | 4040 | 4040 | 4040 | 4040 | 4040 | 4040 |
| Size / Dimension | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.425" L x 0.400" W (10.80mm x 10.16mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
