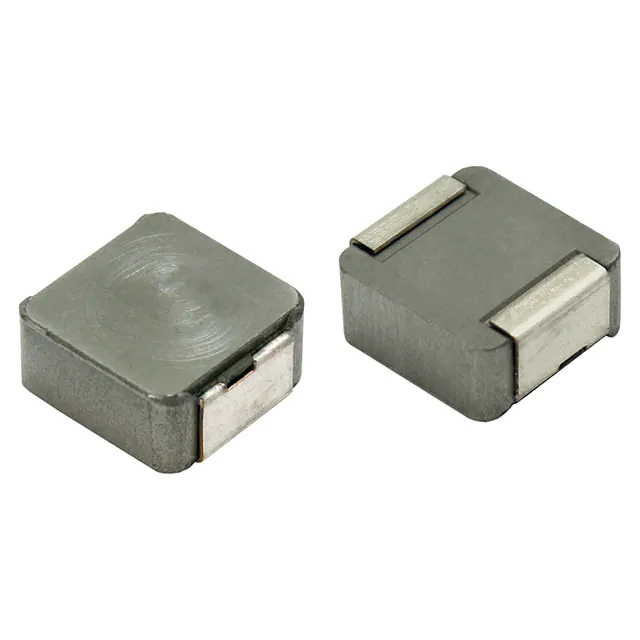

| Part Number | IHLP3232DZER4R7M8A | IHLP3232DZER4R7M1A | IHLP3232DZER4R7M5A |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | - | - | Molded |
| Material - Core | Metal Composite | Metal Composite | - |
| Inductance | 4.7 µH | 4.7 µH | 4.7 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 7.2 A | 8 A | 7.2 A |
| Current - Saturation (Isat) | 9.1A | 8.7A | 9.1A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 28.46mOhm Max | 22.6mOhm Max | 28.46mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 18MHz | 17MHz | 18MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 180°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.322" L x 0.322" W (8.18mm x 8.18mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
