Please send RFQ , we will respond immediately.

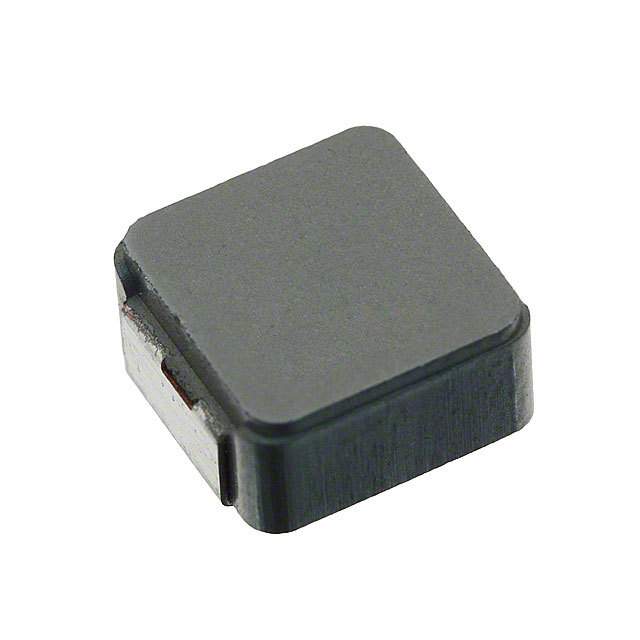

| Part Number | IHLP3232DZER330M51 | IHLP3232DZER330M5A | IHLP3232DZER330M11 |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | Molded | Molded | Molded |
| Material - Core | - | - | - |
| Inductance | 33 µH | 33 µH | 33 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3.1 A | 3.1 A | 3.2 A |
| Current - Saturation (Isat) | 3.2A | 3.2A | 3.2A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 159.43mOhm Max | 159.43mOhm Max | 144mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 6.1MHz | 6.1MHz | 6.7MHz |
| Ratings | - | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.322" L x 0.322" W (8.18mm x 8.18mm) | 0.322" L x 0.322" W (8.18mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
